1979 SERVETA LI150

Work done: (Stu)
- AF Rayspeed Stage IV 175cc kit
- Mec Eur crank
- Clutch plates, springs, spider
- OKO 30 mm flatside carb
- Pod filter
- Expansion chamber exhaust
- SIL Electronic ignition
- Fork springs, links, dampers
- Front anti-dive disc brake
- R6 shock
- Cables
- Stainless tank, glove box, fan cover
- Paint 2011 Camaro orange (shop)
Work done: (me)
- Replace R6 shock
- Install/tune Dellorto carb
- Wire turn signals
- Set anti-dive


Picking up LI175


Comments:

The plan was... I would disassemble. Stu Werner would build engine. I would reassemble. BUT the flood hit and I had my hands full project managing the house. Stu agreed to do the reassembly.

It was finished three months after we moved back in, just in time for Chloe's birthday. I hid it in the garage for a week without her noticing.

I've had a lot of trouble getting it to run right and use it very little. It hit bumps like it had no suspension, so I replace the R6 shock with a standard scooter shock. I also learned the proper way to set the anti-dive. It was hard to start and died easily so I replaced the OKO 30mm carb with a Dellorto 28mm. I have it mostly dialed in. I still need to find the right pilot jet. It still dies when you close the throttle all the way.



Click for full size pic

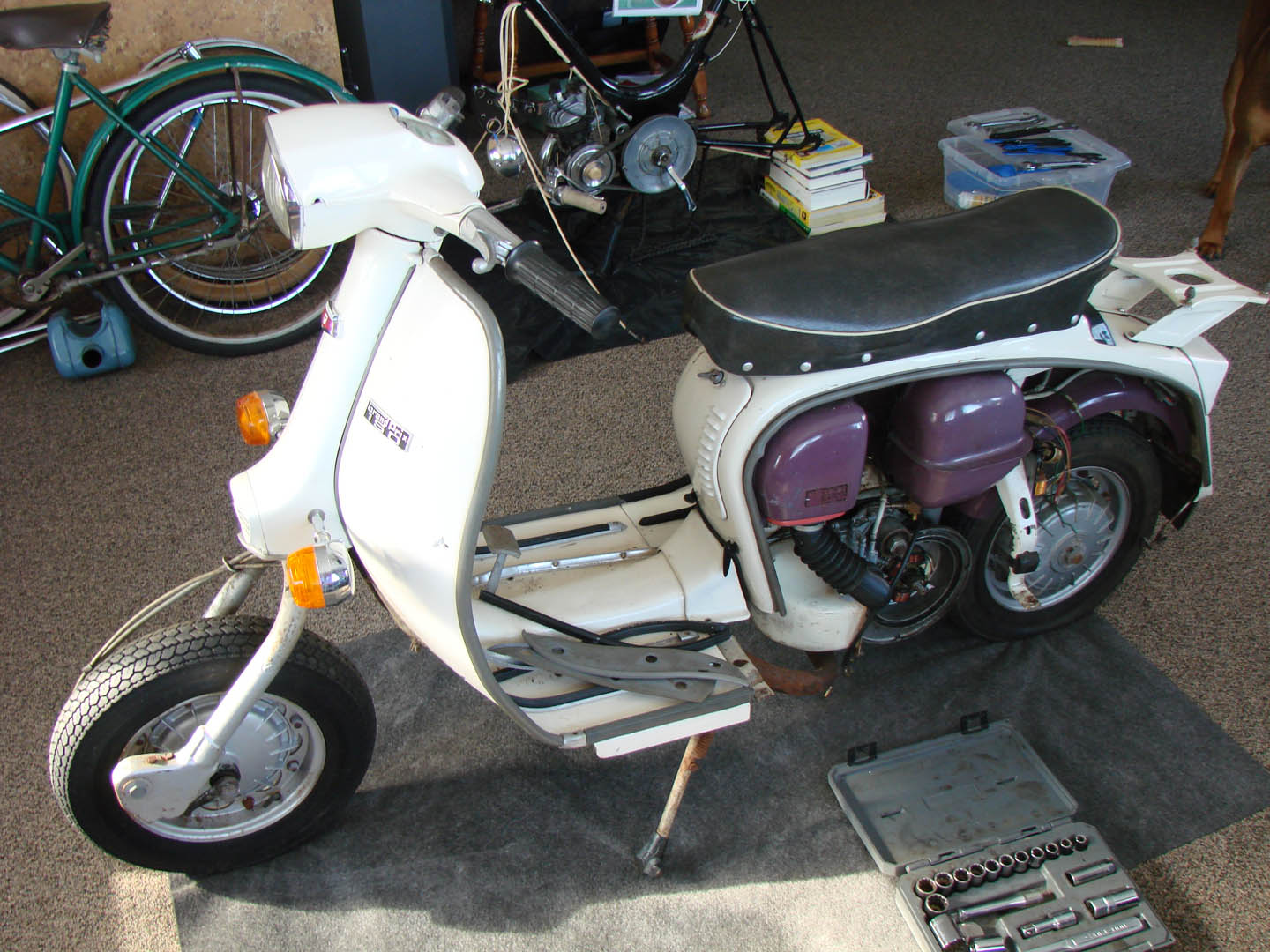

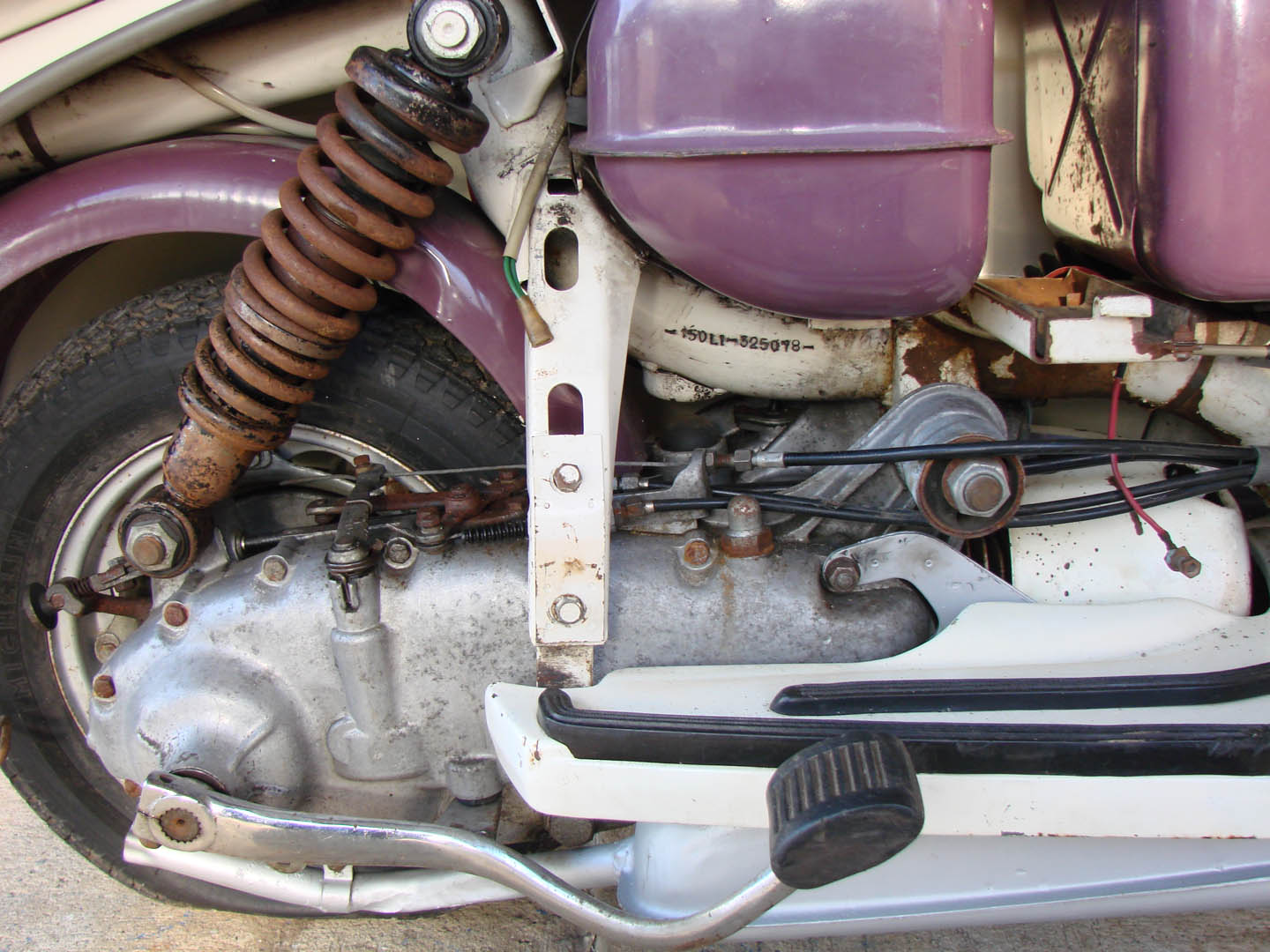

Serveta LI150 as found
Serveta LI150 as found 2
Serveta LI150 as found 3

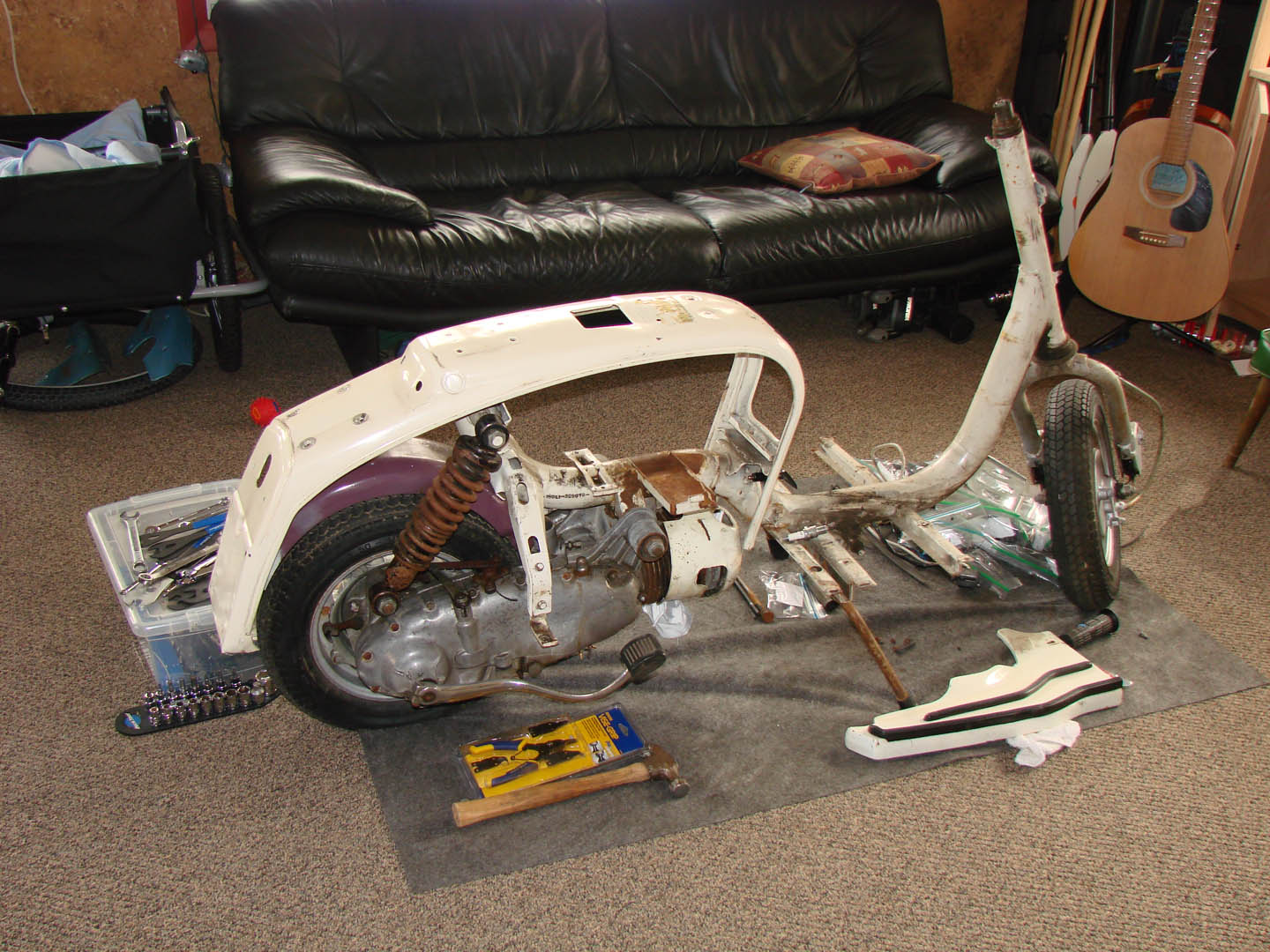

Serveta LI150 disassembly 1
Serveta LI150 disassembly 2

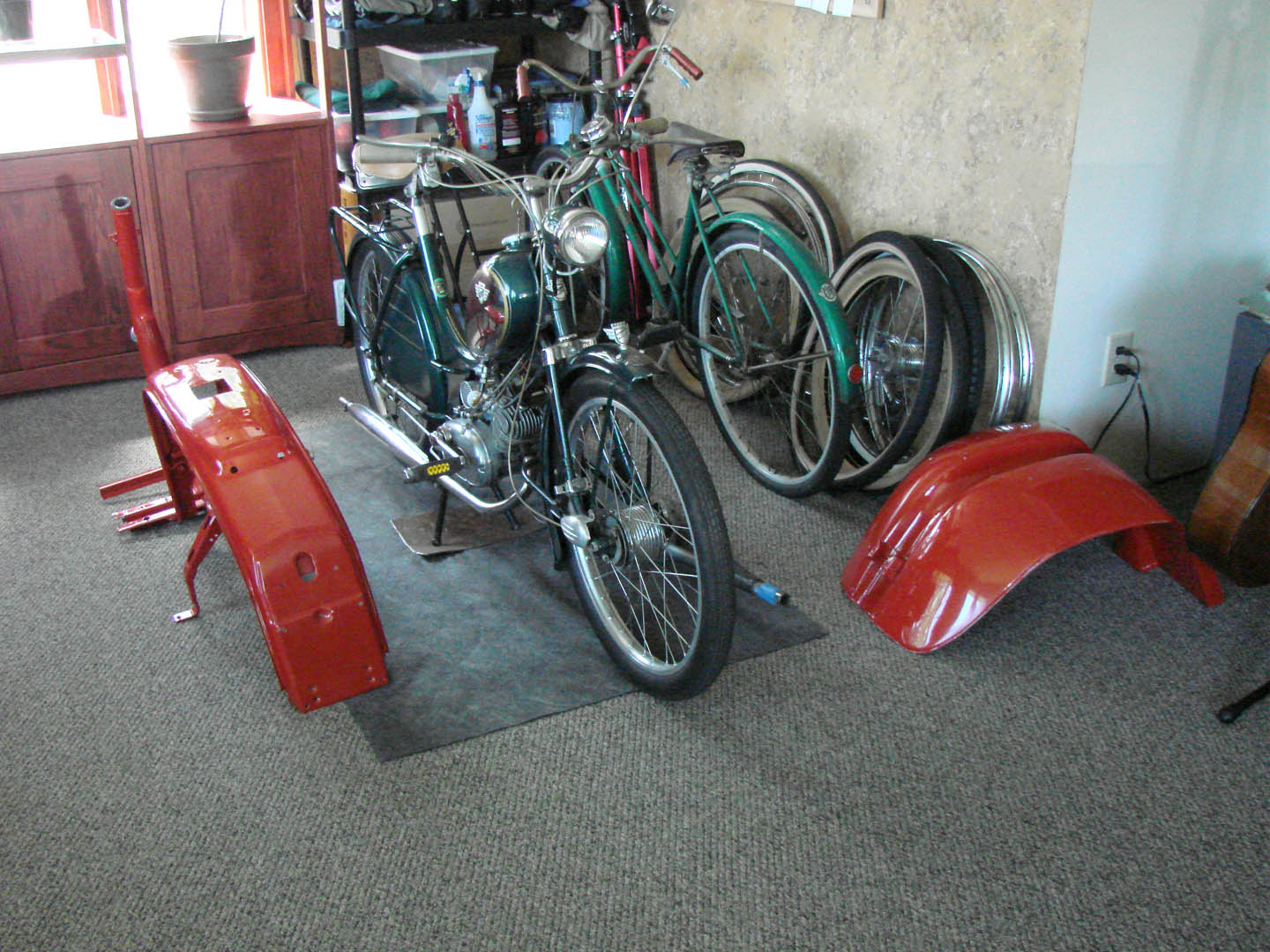

Serveta LI150 body painted

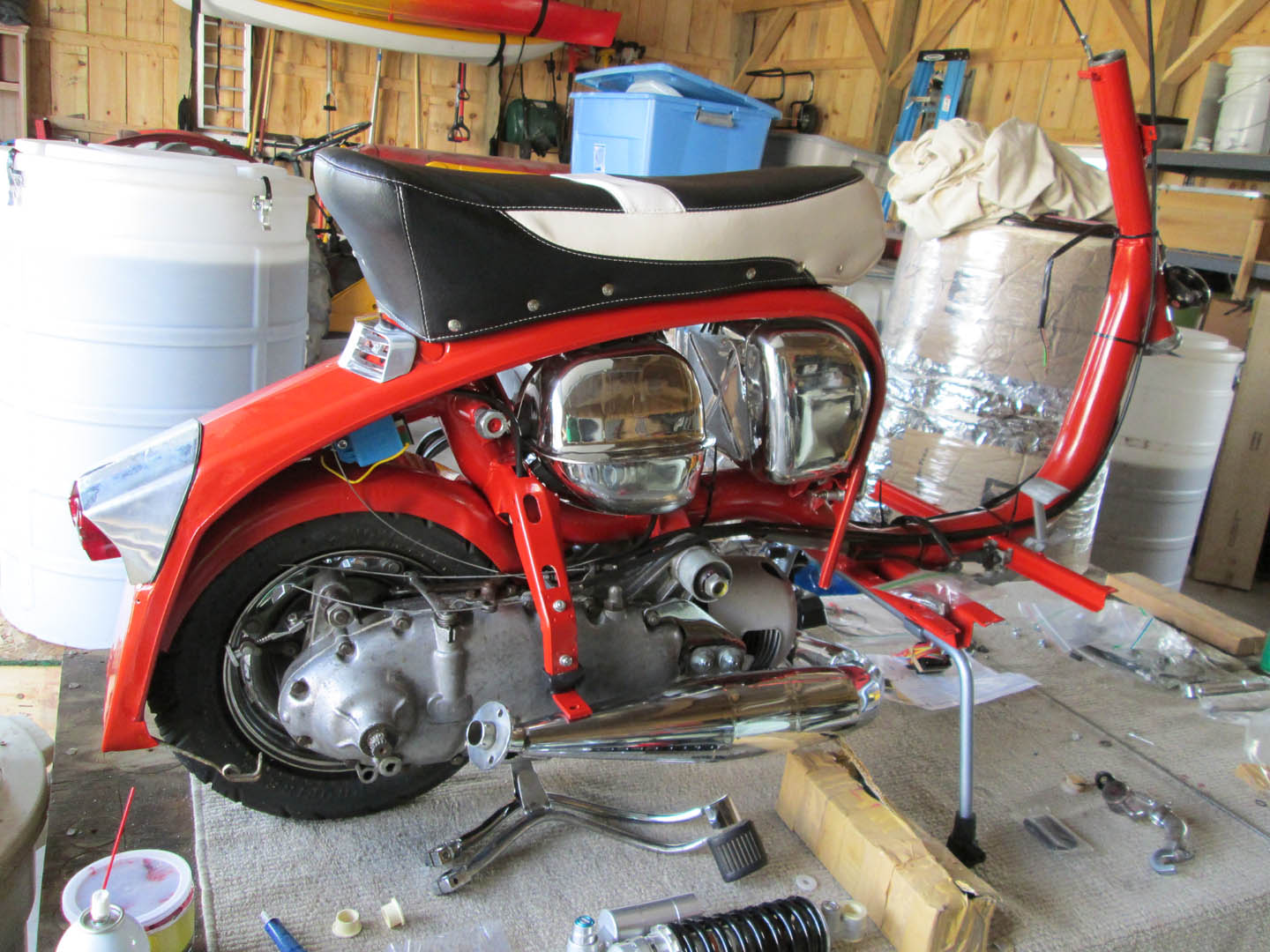

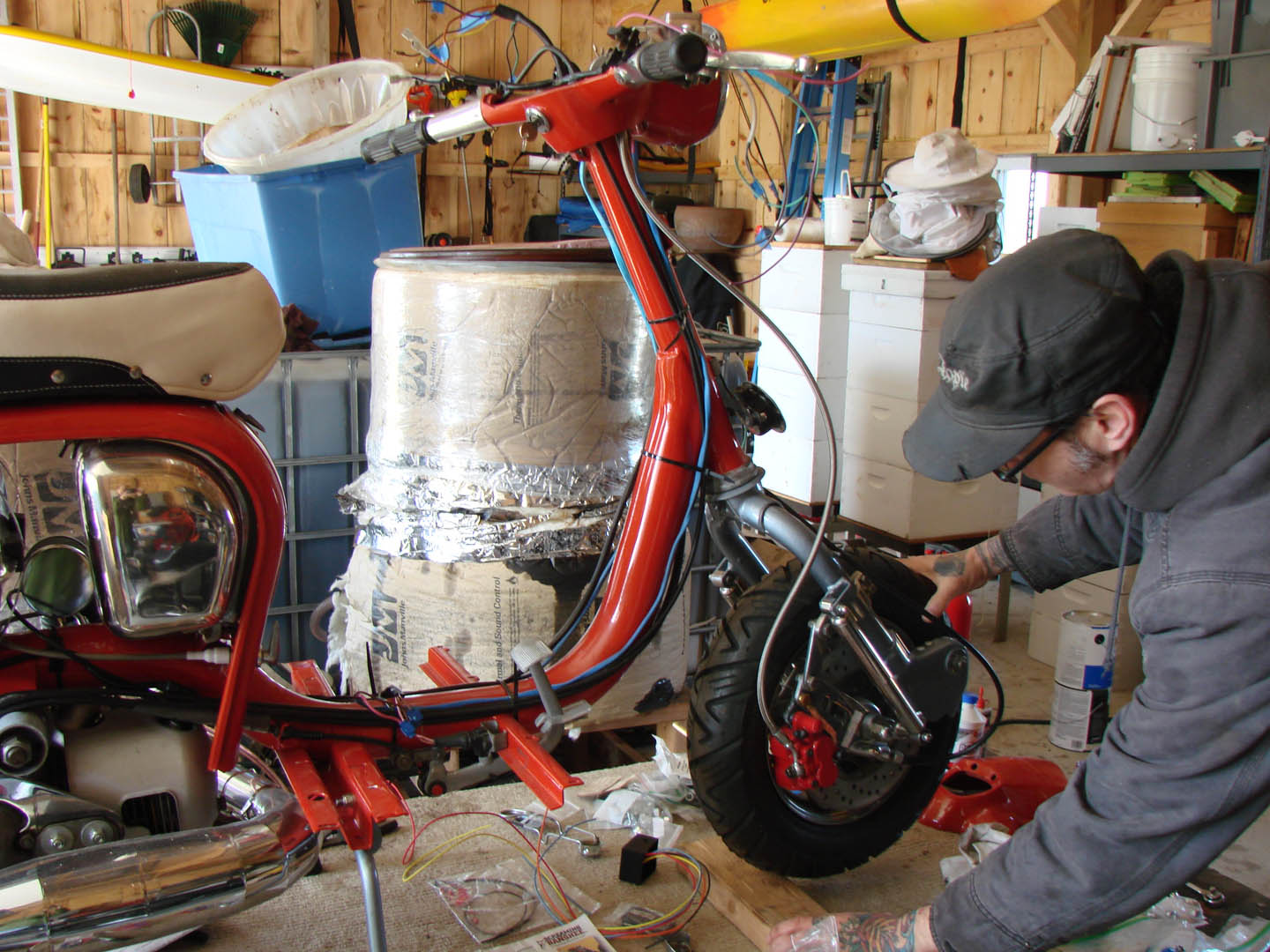

Serveta LI150 rebuild 1

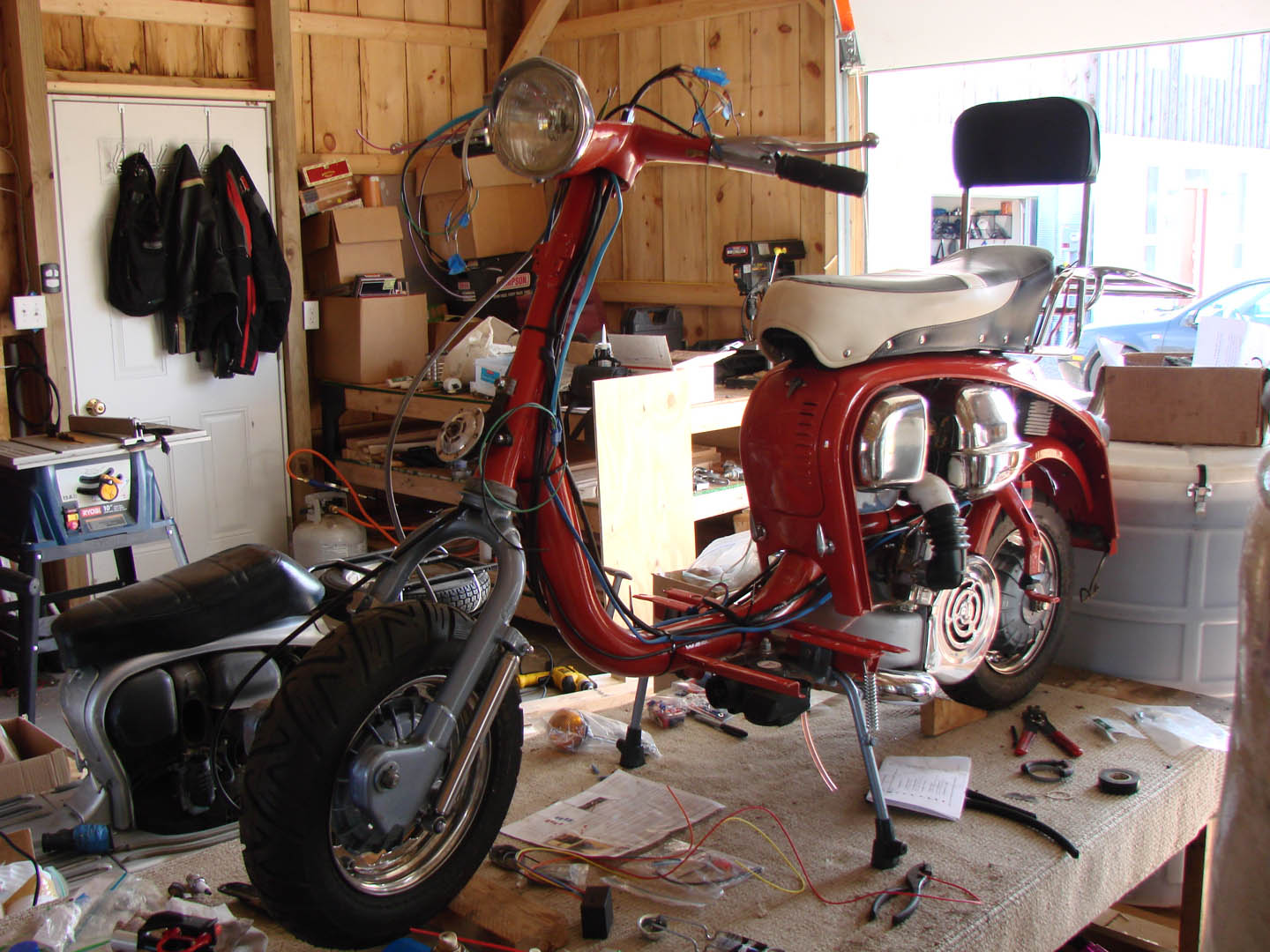

Serveta LI150 rebuild 2
Serveta LI150 rebuild 3

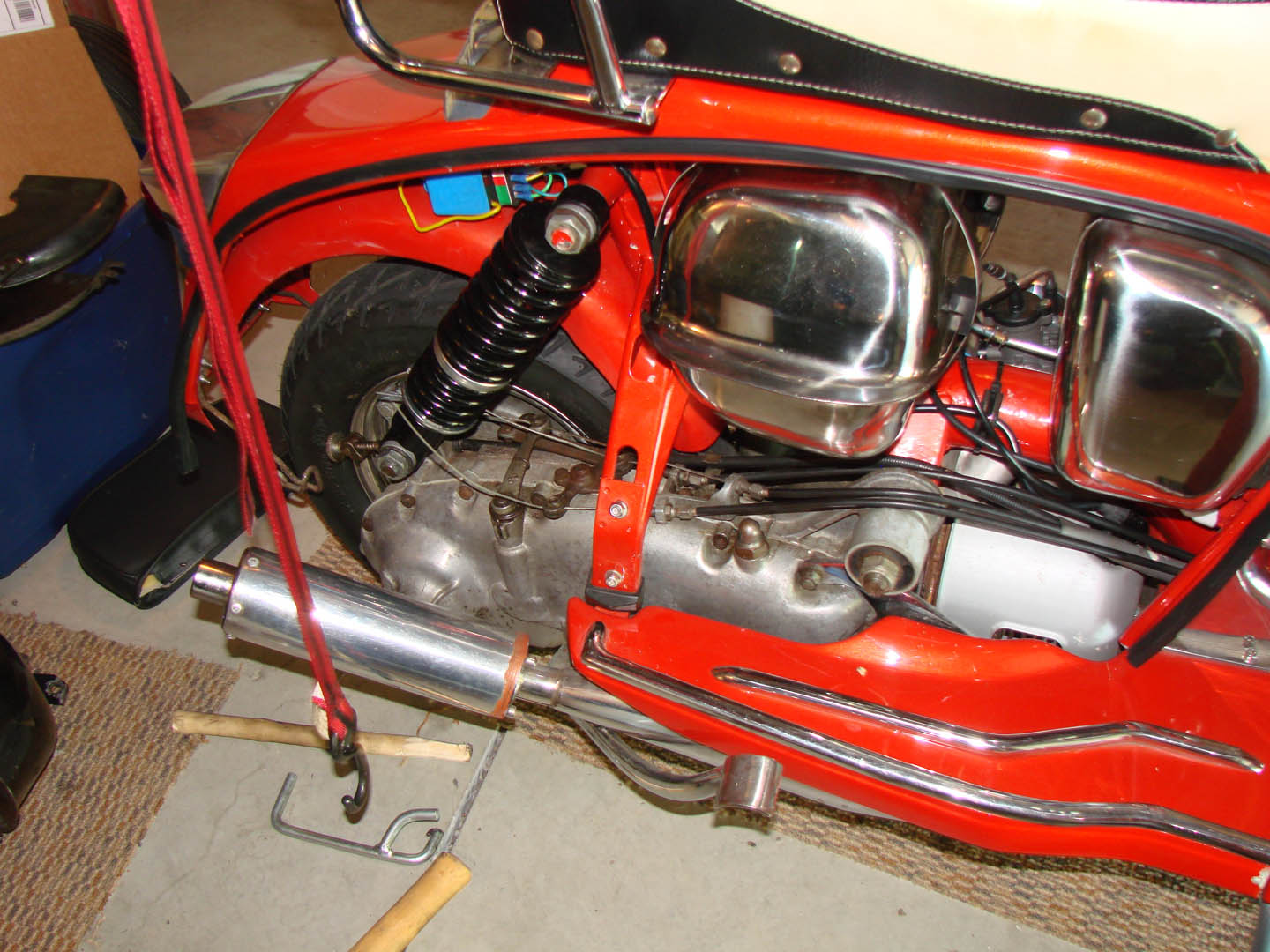

Serveta LI150 shock replace

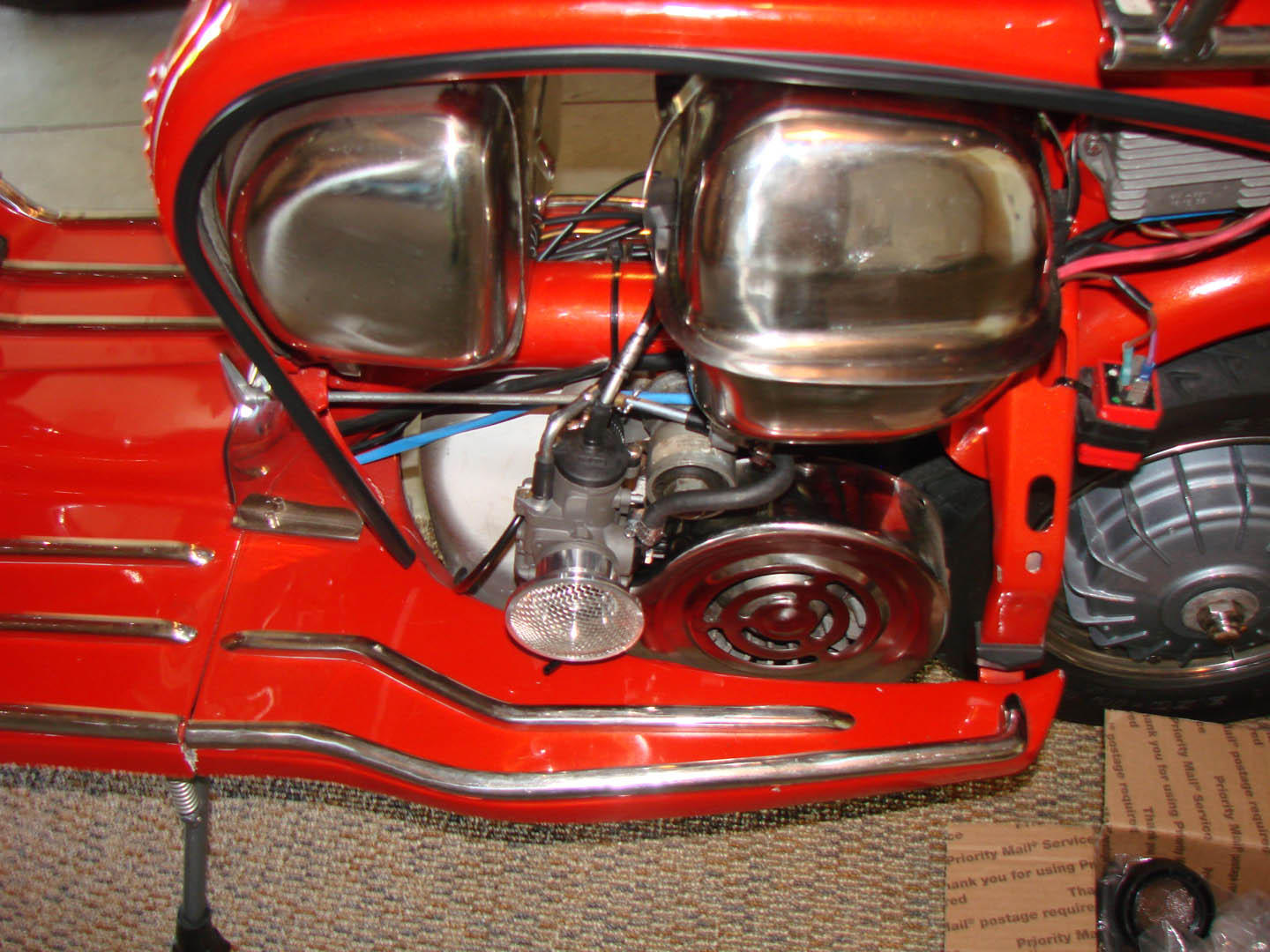

Serveta LI150 Dellorto carb
Serveta LI150 anti-dive adjust

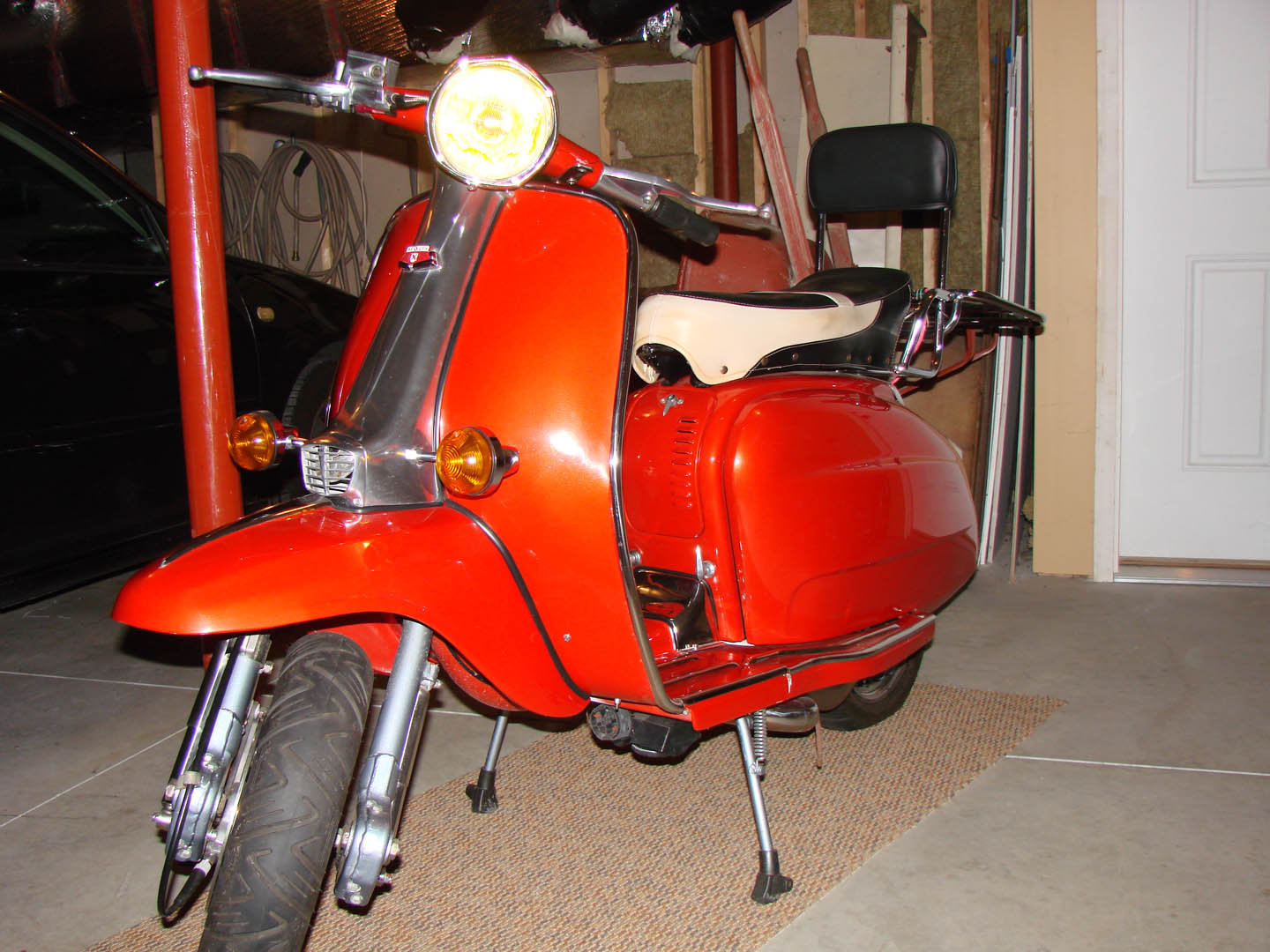

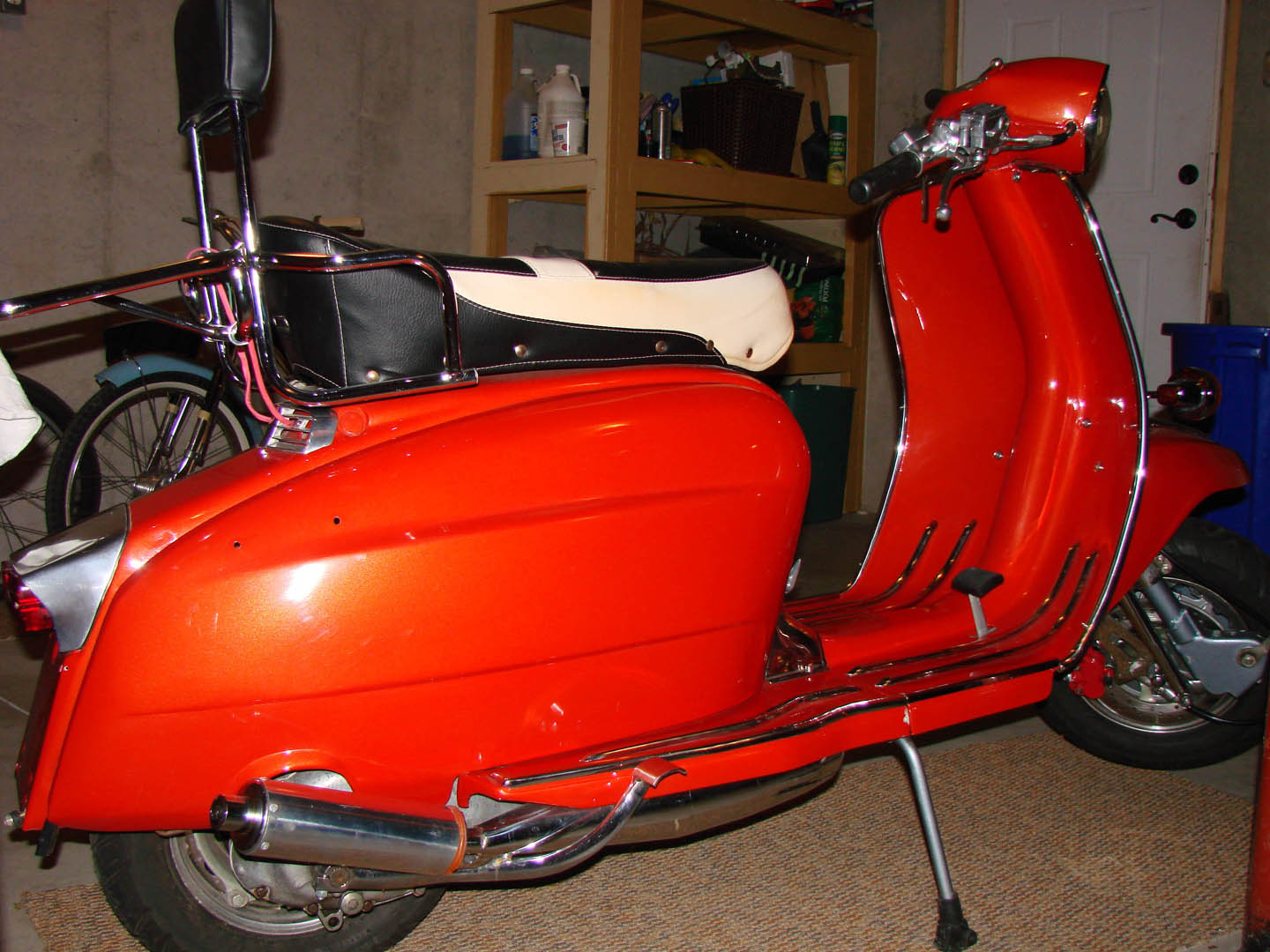

Serveta LI150 finished 1

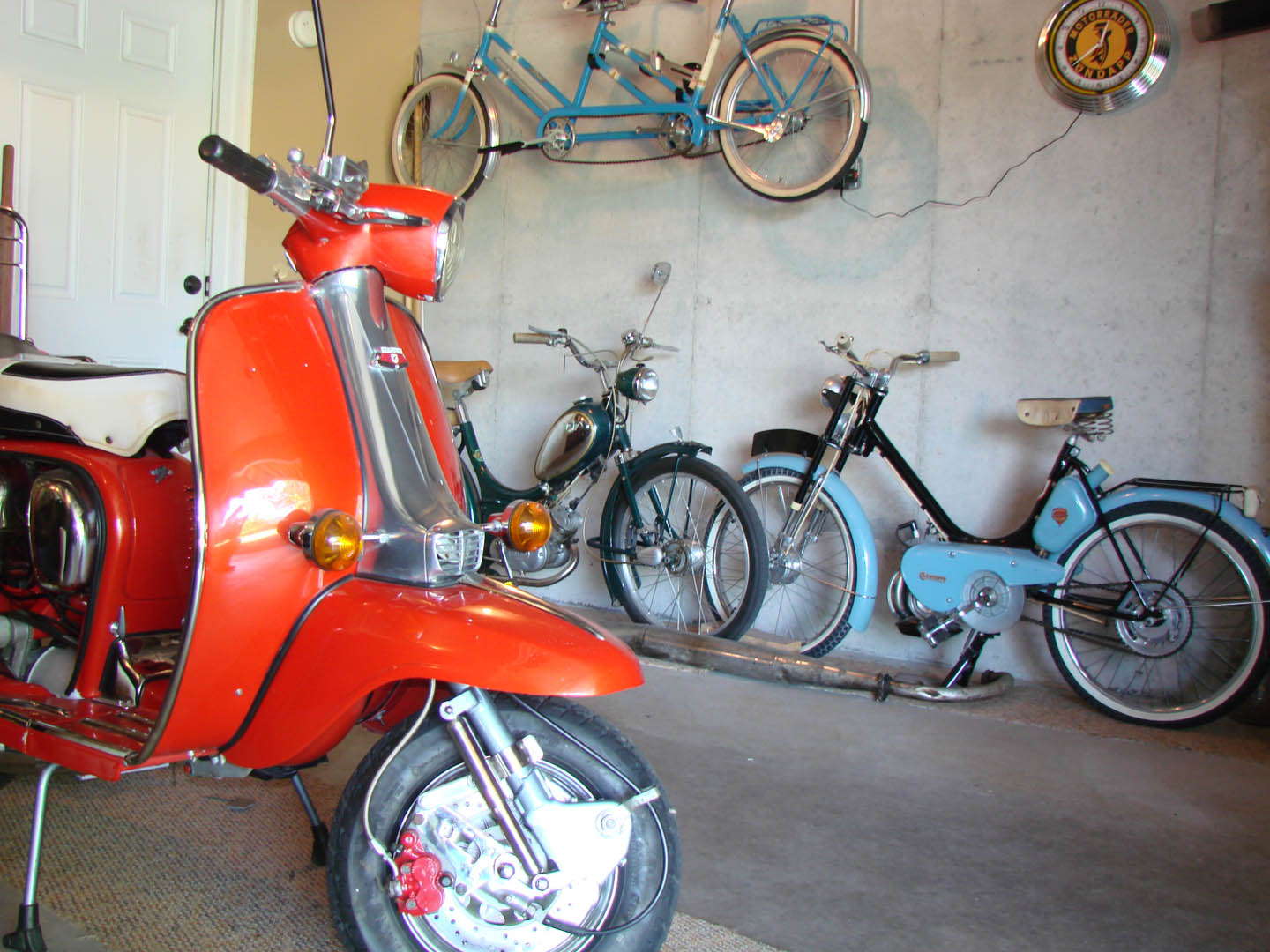

Serveta LI150 finished 2

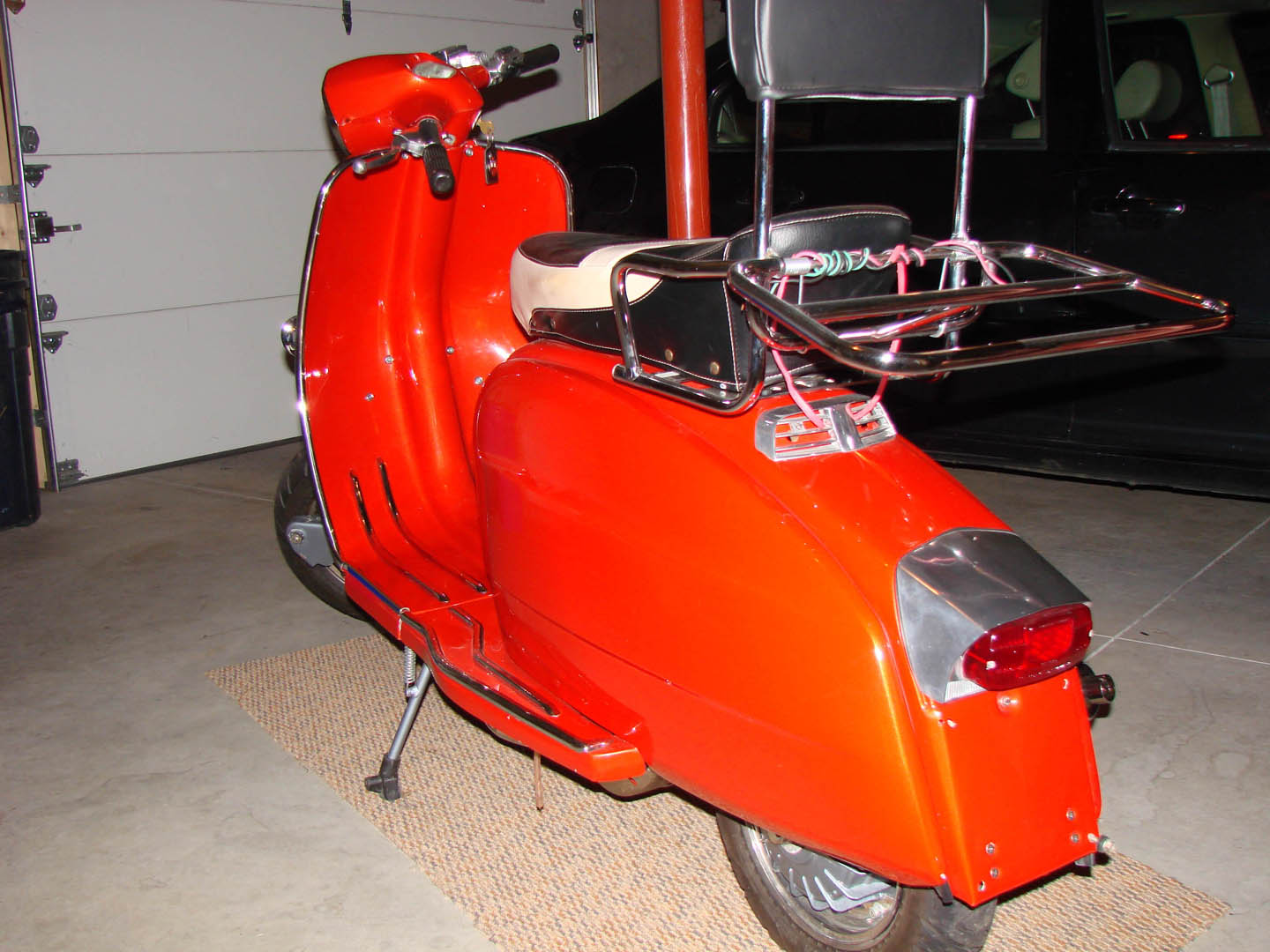

Serveta LI150 finished 3
